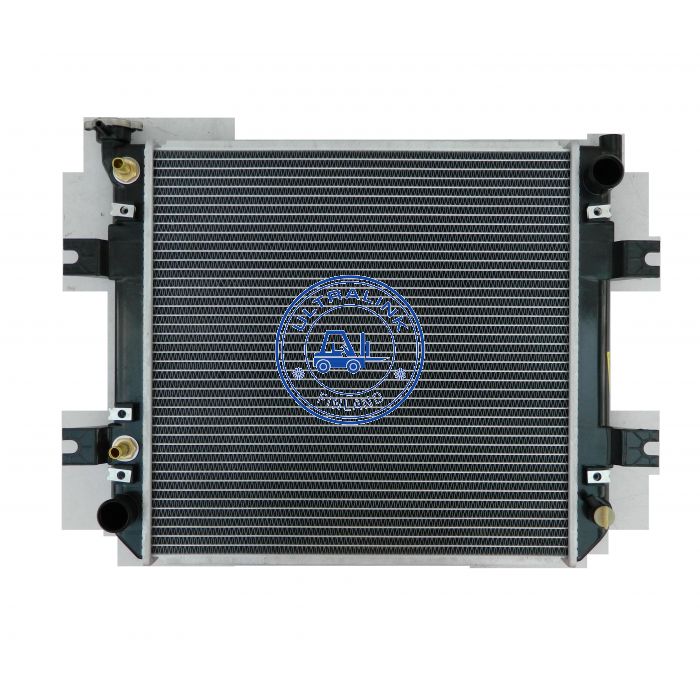

JÄÄHDYTIN, TD27/H25

Radiator type vertical Position radiator cap L5 Position of input water connection R Outer diameter of the input water connection D1 (mm) 36 Position of output water connection L Outer diameter of the output water connection D2 (mm) 36 Center distance between input and output water connection L3 (mm) 633 Position draincock 20 Length without accessories or mounting plates L1 (mm) 540 Height without accessories or mounting plates H1 (mm) 470 Width without accessories or mounting plates W1 (mm) 55 Total length with accessories or mounting plates L2 (mm) 630 Total height with accessories or mounting plates H2 (mm) 485 Total width with accessories or mounting plates W2 (mm) 95 Position oil cooler K2 Center distance between the 2 connections of the oil cooler L4 (mm) 300 Thickness of core of the radiator W3 (mm) 33 Center distance of the fins L5 (mm) 10 Length of the core of the radiator L6 (mm) 450 Height of the core of the radiator H3 (mm) 470 Material collector plastic Material core aluminium Paino 5.95
